View Tab

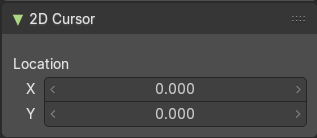

See and set the 2D cursor location.

min readUp to date for

5.1

draft

See and set the 2D cursor location.

This panel is just visible in Mask mode.

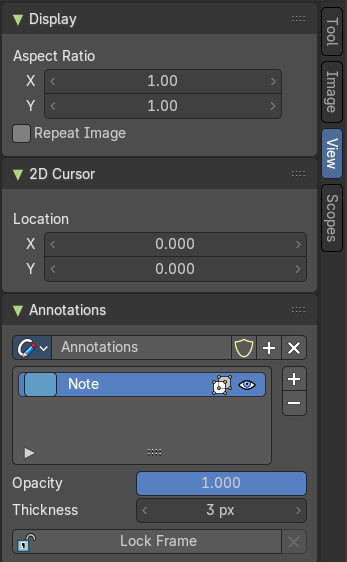

Introduction

The View tab contains some view related settings. And it contains the annotation panel.

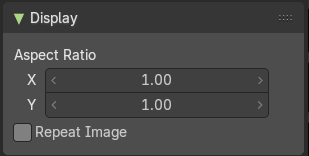

Entry	What it does
Aspect Ratio X , Y	Set the aspect ratio of the image.
Repeat	With this ticked the image is repeated in the UV Image canvas.

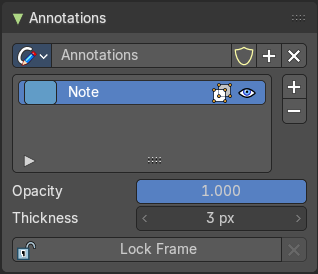

Manage the Annotation layers and materials.

When you don't have drawn an annotation yet then the panel just contains a New button.

Add, remove and rename new annotations.

A list of the available annotation layers.

Entry	What it does
Edit Box	The name of the current annotation. You can rename the annotation to your needs here.
Fake User	Assign a fake user to this annotation. Fake users is an odd concept to keep data in the scene even if it has no user somewhere. The fake user is then a dummy user so that the object is not deleted when saving the scene.
Add Annotation	Add a new annotation.
Delete Annotation	Delete the annotation.

Here you see your Annotation layers for the current Annotation. Every layer can have an own color.

At the right side you find buttons to sort them and to add and remove new Annotation layers.

You can change the color by clicking at the color field. A color dialog will pop up. You can rename annotation layers by double clicking at it.

The eye icon allows you to make it invisible And it has a search field.

Entry	What it does
Opacity	The annotation layer opacity.
Thickness	The thickness of the annotation stroke.
Frame Locked/Unlocked	Lock frame displayed by current layer. This toggles whether the active layer is the only one that can be edited. · Delete active frame: Delete the active frame from the active annotation layer.
