Add Menu - Utilities - Matrix
Matrix nodes.

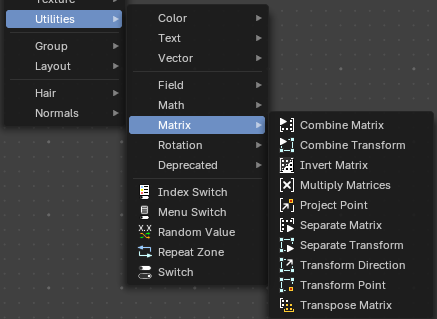

Add menu - Utilities - Matrix
Matrix nodes.
Combine Matrix
Combines values into a matrix. A matrix is something like a transform cage. A vector 4 in 4 dimensions.
Inputs
Column 1 , 2, 3, 4
Allows you to combine values into the matrix. A matrix is made of four vector 4 in 4 dimensions. So 16 values.
Output
Matrix
The output matrix.

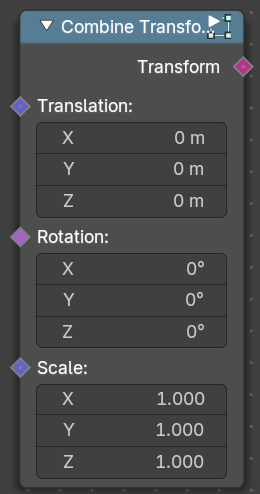

Combine Transform
Combines transforms.
| Entry | What it does |
|---|---|
| Inputs | Translation: The translation input vector. · Rotation: The rotation input vector. · Scale: The scale input vector. |
| Output | Transform: The output transform. |
Matrix Determinant
The Matrix Determinant Node is used for calculating the determinant of a given matrix. Use this node to evaluate whether a matrix has properties for invertibility, scaling, and orientation.
| Entry | What it does |
|---|---|
| Inputs | Matgrix: Accepts a matrix input. |
| Output | Determinant: Returns a single numerical value representing the determinant of the input matrix. If the determinant is zero, the matrix is non-invertible. |
Invert Matrix
Inverts the matrix values.
| Entry | What it does |
|---|---|
| Inputs | Matrix: The input matrix. |
| Output | Matrix: The output matrix. · Invertible: The inverted values. |
Multiply Matrix
Multiplies the values of two matrices.
| Entry | What it does |
|---|---|
| Inputs | Matrix, Matrix: The input matrices |
| Output | Matrix: The output matrix. |

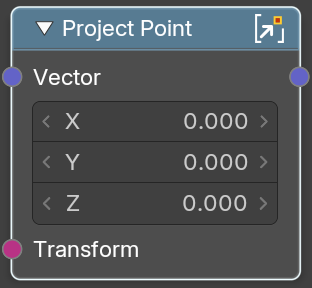

Project Point
Projects a transform point by a vector.
| Entry | What it does |
|---|---|
| Inputs | Vector: The input vector · Transform: The input transform point |
| Output | Vector: The output vector. |

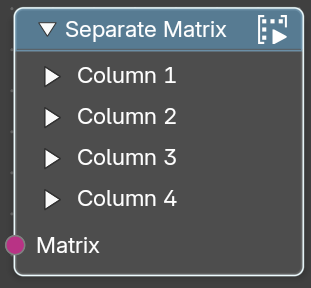

Separate Matrix
Extract single values from a matrix. A matrix is something like a transform cage. A vector 4 in 4 dimensions.
Inputs
Matrix
The input matrix.
Output
Column 1 , 2, 3, 4
Extract the values from a row in a column. A matrix is made of four vector 4 in 4 dimensions. So 16 values.
Separate Transform
Extracts the translation, rotation or scale values from a transform.
| Entry | What it does |
|---|---|
| Inputs | Transform: The input transform. |
| Output | Translation: The translation output vector. · Rotation: The rotation output vector. · Scale: The scale output vector. |

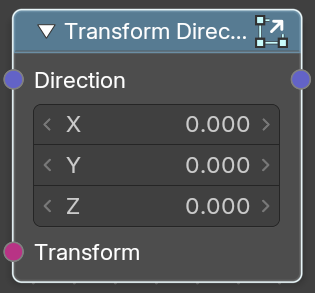

Transform Direction
Set the direction of a transform.
| Entry | What it does |
|---|---|
| Inputs | Direction: The input vector 3. · Transform: The input transform. |
| Output | Direction: The output direction. |

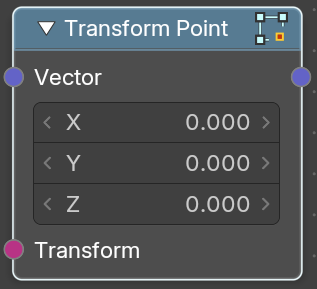

Transform Point
Transform a transform point.
| Entry | What it does |
|---|---|
| Inputs | Vector: The input vector 3. · Transform: The input transform. |
| Output | Direction: The output vector. |

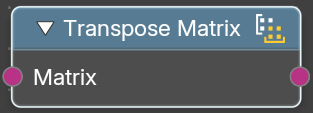

Transpose Matrix
Retreive the transpose matrix from a matrix.
| Entry | What it does |
|---|---|
| Inputs | Matrix: The input matrix. |
| Output | Matrix: The output transpose matrix. |
