Add Menu - Utilities - Deprecated
These deprecated nodes are kept for compatibility reasons.

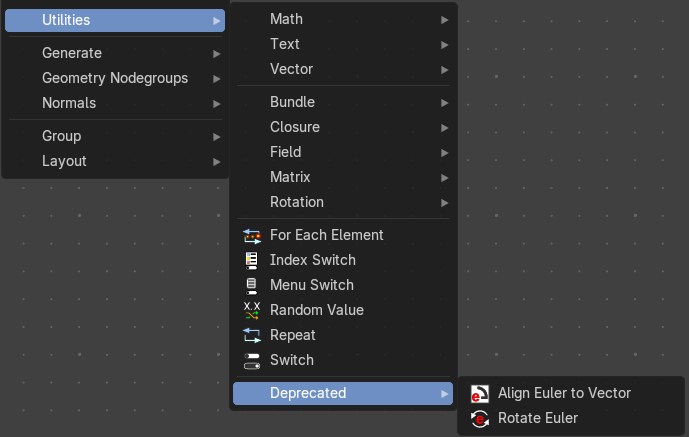

Add menu - Deprecated
These deprecated nodes are kept for compatibility reasons.

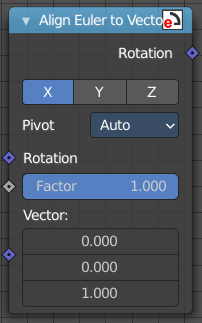

Align Euler to Vector (Deprecated)
Aligns a euler value to a vector.
Inputs
| Entry | What it does |
|---|---|
| Rotation | The input euler rotation vector. |
| Factor | The factor to align the euler value to the vector. |
| Vector | The vector to align to. |
Properties
Align Axis
To which axis to align the vector.
Pivot
The pivot axis.
Output
Rotation
The output rotation euler angle.
Rotate Euler (Deprecated)
Rotates an euler rotation. This node will be removed in the near future. Alternatively use the Rotate Rotation node.
Inputs
| Entry | What it does |
|---|---|
| Rotation | Use the rotation of an existing geometry. |
| Rotate By | The input rotation. |
Properties
| Entry | What it does |
|---|---|
| Rotate Type | Axis Angle: Rotate around an axis by an angle. · Euler: Rotate around the x, y and z axis. |
| Rotate Space | Object: Rotate points in the local space of the object. · Point: Rotate every point in its local space. |
Outputs
Rotation
The euler angle output.
