Add Menu - Mesh - Topology
Mesh topology related nodes.

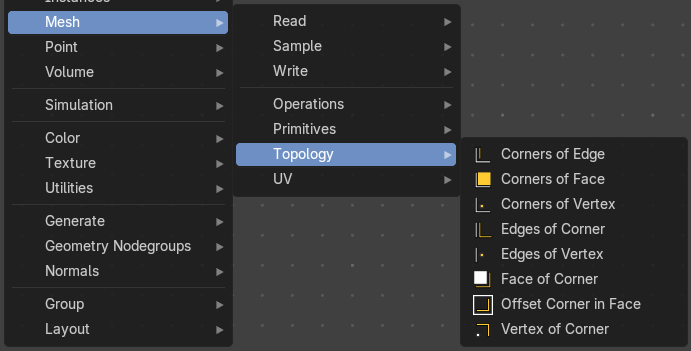

Add menu - Mesh - Topology
Mesh topology related nodes.
Corners of Edge
Retreive the corners that makes up a edge.
| Entry | What it does |
|---|---|
| Input | Face Index: The face to get the data from. · Weights: Values used to sort the corners of the face. · Sort Index: Which of the corners to output. |
| Outputs | Corner Index: The output corner. · Total: The number of corners in the face. |
Corners of Face
Retreive the corners that makes up a face.
| Entry | What it does |
|---|---|
| Input | Face Index: The face to get the data from. · Weights: Values used to sort the corners of the face. · Sort Index: Which of the corners to output. |
| Outputs | Corner Index: The output corner. · Total: The number of corners in the face. |
Corners of Vertex
Retreive face corners connected to vertices.
| Entry | What it does |
|---|---|
| Input | Vertex Index: The vertice to get the data from. · Weights: Values used to sort the corners attached to the vertice. · Sort Index: Which of the corners to output. |
| Outputs | Corner Index: The output corner. · Total: The number of corners connected to each vertice. |
Edges of Corner
Retreive the edges of both sides of a corner.
| Entry | What it does |
|---|---|
| Input | Corner Index: The corner to retreive the data from. |
| Outputs | Next Edge Index: The edge behind the corner. · Previous Edge Index: The edge before the corner. |
Edges of Vertex
Retreive the edges connected to each vertex.
| Entry | What it does |
|---|---|
| Input | Vertex Index: The vertice to get the data from. · Weights: Values used to sort the edges attached to the vertice. · Sort Index: Which of the edges to output. |
| Outputs | Edge Index: The output edge. · Total: The number of edges connected to each vertice. |
Face of Corner
Retreive the faces connected to each corner.
| Entry | What it does |
|---|---|
| Input | Corner Index: The corner to get the data from. |
| Outputs | Face Index: The output faces. · Index in Face: The index of the corner, starting from the first corner in the face. |
Offset Corner in Face
Retreive corners within the same face as another
| Entry | What it does |
|---|---|
| Input | Corner Index: The corner to get the data from. · Offset: The numbers of corners to move around the face before getting the result. It circles around the start of the face if necessary. |
| Outputs | Corner Index: The index of the offset corner. |
Vertex of corner
Retreive the vertex each corner is attached to.
| Entry | What it does |
|---|---|
| Input | Corner Index: The corner to get the data from. · Offset: The numbers of corners to move around the face before getting the result. It circles around the start of the face if necessary. |
| Outputs | Vertex Index: The vertex each corner is attached to. |
