Add Menu - Grease Pencil - Write
Grease pencil nodes.

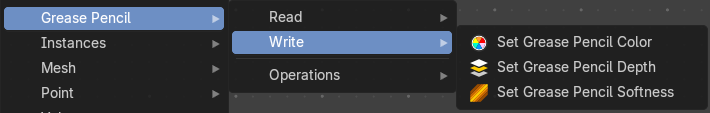

Add menu - Grease Pencil - Write
Grease pencil nodes.
Set Grease Pencil Color
Sets the color and opacity of a grease pencil geometry.
Inputs
| Entry | What it does |
|---|---|
| Grease Pencil | The grease pencil geometry. |
| Selection | A selection of the grease pencil geometry. |
| Color | The color. |
| Opacity | The opacity. |
Properties
Mode
| Entry | What it does |
|---|---|
| Fill | Change the fill color. |
| Stroke | Change the stroke color. |
Outputs
Color
The grease pencil output with changed colors.

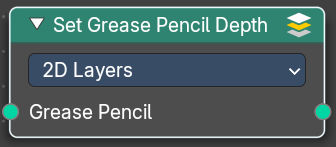

Set Grease Pencil Depth
Set the grease pencil depth order to use. By 2d layers, or by the position in 3d space.
Inputs
Grease Pencil
The grease pencil geometry.
Properties
Depth Order
| Entry | What it does |
|---|---|
| 2D Layers | Set the grease pencil depth by the 2d layers. |
| 3D Location | Set the grease pencil depth by the postion in 3d space. |
Outputs
Grease Pencil
The grease pencil geometry.

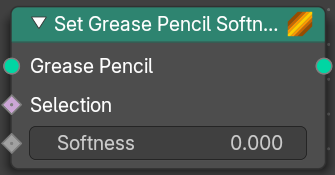

Set Grease Pencil Softness
Adjust the falloff towards the stoke border.
| Entry | What it does |
|---|---|
| Inputs | Grease Pencil: The grease pencil geometry. · Selection: A selection of the grease pencil geometry. · Softness: The falloff softness. A value of 1 means sharp border. A falloff of 0 means a falloff from the center to the border with a complete transparency at the border. |
| Outputs | Grease Pencil: The grease pencil geometry. |
