Add Menu - Geometry
Here you find nodes to modify the geometry.

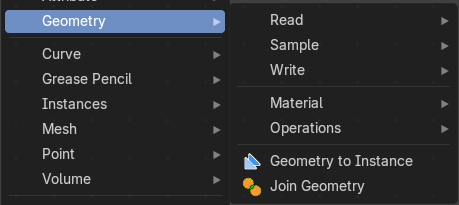

Add menu - Geometry
Here you find nodes to modify the geometry.

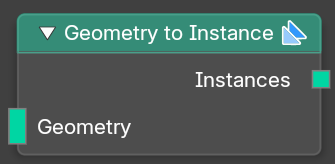

Geometry to Instance
Turns every connected input geometry into an instance. These instances can then for example be used in the Instance on Points node.
| Entry | What it does |
|---|---|
| Inputs | Geometry: The input geometry. |
| Outputs | Instances: The output instances. |

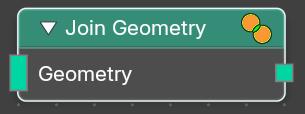

Join Geometry
The Join Geometry enables you to merge separately generated pieces of geometry into a single one. In case that the inputted pieces contain different types of geometry, the output will contain multiple types of geometry.
| Entry | What it does |
|---|---|
| Inputs | Geometry: Standard geometry input. |
| Output | Geometry: Standard geometry output. |
