Geometry Node Editor
The Geometry Node Editor is an editor where you can modify the geometry of objects procedurally by nodes.
Geometry Nodes Editor
The Geometry Node Editor is an editor where you can modify the geometry of objects procedurally by nodes.
You can also create Node Group Tools for act-once operators using Geometry Node Group Tools.

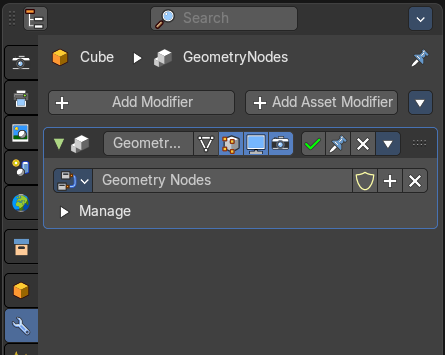

When you add a node group, then a modifier is added to the Modifier Stack in the Properties Editor. Geometry nodes are tied to this modifier.

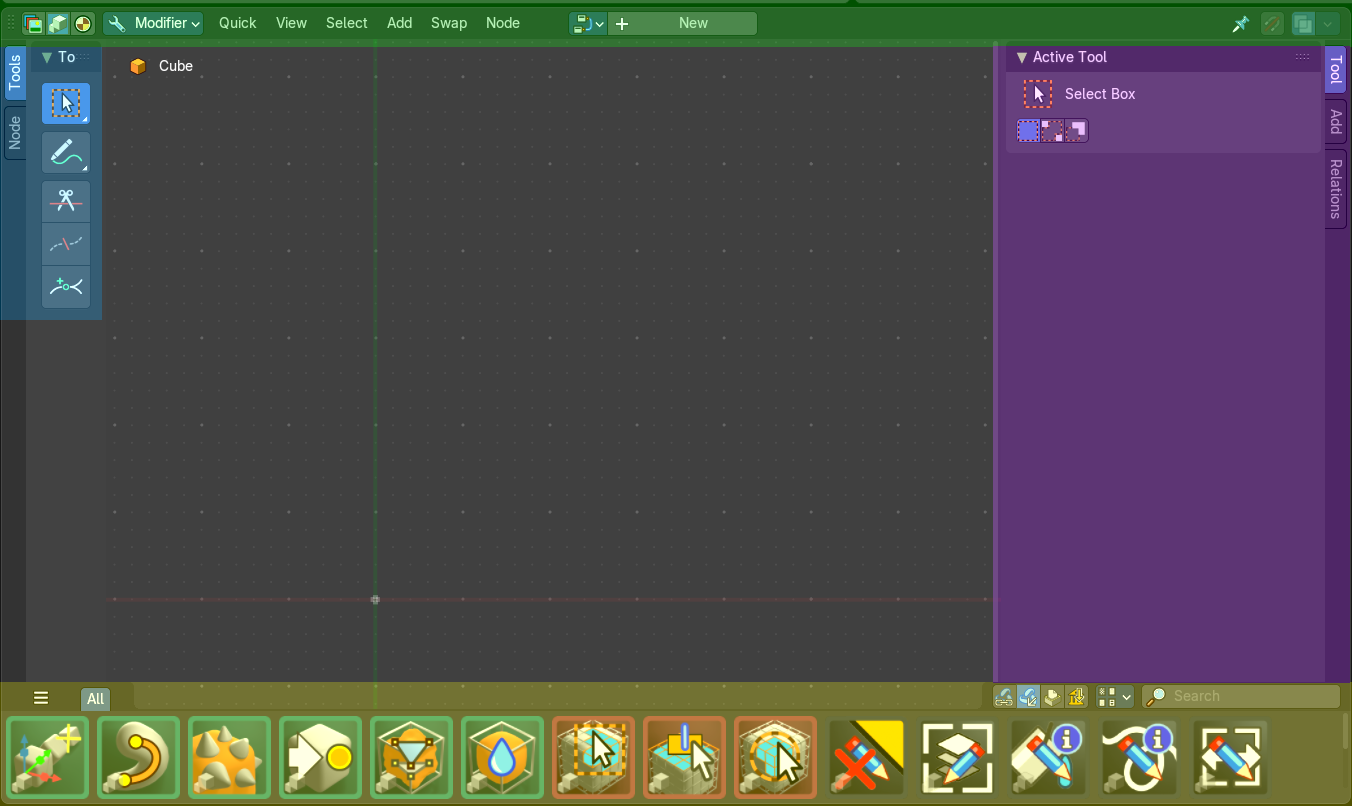

The editor is divided into several areas has several tool areas.
Header
Tool Shelf
Sidebar
Assets
Note that the shader editor does not have a tool area above the header. All tool settings are in the sidebar in the Tool tab.
The node editor displays a breadcrumb at the upper left when a geometry node tree exists. It is just a visual hint, and has no further functionality.
Navigating in the Geometry Nodes Editor viewport
Hotkeys
Pan the view - MMB
Zoom - Mouse Wheel, MMB + Ctrl, Numpad + / -
View All – Home
Collapsing Nodes
When clicking on the arrow of the header on a node, you can collapse the node to show only the name and icon.
You can either collapse using the context menu, header menu or hotkey with the Show/Hide – Collapse operator.
Rename Socket names
In some nodes you can rename the socket names by holding down Ctrl and click at the name.
Node drag search
When you grab a node input or output, drag it around, and release it in the empty space, then you will get a search menu with the available nodes that fits to this input or output.

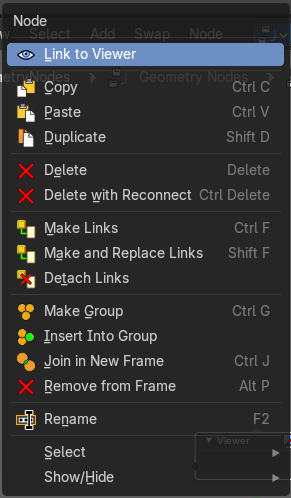

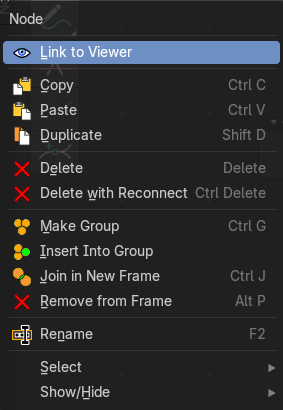

Node context menu
When you double right click into the viewport, then you will open a menu. The Context menu. Its content is to 100% double content to already existing menus. And it is despite the name not contextual. It does though show different content under different circumstances.
Add
The whole add menu from the header.
Find
Search for nodes, and hilight them. When you are in a node group then it lists the content of the node group.
| Entry | What it does |
|---|---|
| Clear Viewer | Select the node under the cursor. |
| Cut Links | Calls a cut tool with which you can cut links between nodes |
| Mute Links | Calls a cut tool with which you mute cut links between nodes. To unmute the links use the same tool again. |
| Exit Group | Same as Edit Group. When you are in a group then you can end editing with this operator. |
| Link to Viewer | Adds a viewer node to the selected node. |
| Copy | Copies the selected nodes. |
| Paste | Pastes the copied nodes. |
| Duplicate | Duplicates the selected nodes. |
Rename
Allows you to rename the current active node. A popup opens up where you can type in another name.
| Entry | What it does |
|---|---|
| Delete | Deletes the selected nodes. All Connections gets removed. |
| Delete with Reconnect | Deletes the selected nodes. Existing connections gets bypassed as if the node would not have existed. |
| Make Links | Shows when you have at least two nodes connected. Tries to connect nodes where it makes sense. For example, the BSDF output of a Principled shader with the Surface input of the Material Output node. |
| Make and Replace Links | Shows when you have at least two nodes connected. Same as Make Links. But it will replace existing links. |
| Detach Links | Shows when you have at least two nodes connected. Removes all connections from the selected node, but tries to reconnect the remaining nodes. |
Make Group
Groups the selected nodes together.
Select the nodes that you want to group together. Choose Make Group. You will now see a green background. This indicates that the group is created, and that you are in edit mode for the group now.
To exit the group edit mode press Tab key, or choose Toggle Edit Group menu item in the sidebar in the Relations tab in the Group panel. That way you can also enter the Group Edit mode again.
There is a third way to enter the group edit mode. Click at the right upper icon of the group node.
A group can be further collapsed by clicking at the triangle button in the upper left corner.
The group can be renamed in the sidebar in the Item tab and in the Properties tab in the Node panel.
Insert into Group
Allows you to insert a node into a node group.
Select the node, hold down Shift, then select the node group so that both are selected. Then perform the operator.
Toggle Edit Group
Enters a node group for editing. Or when you are in a node group, exits the node group editing.
| Entry | What it does |
|---|---|
| Ungroup | Removes the selected nodes from a group. |
| Join new Frame | Frame node functionality. Adds the selected node to a frame. |
| Remove from Frame | Frame node functionality. Removes the selected node from a frame. |
| Rename | Allows you to rename a node. |
Select submenu
| Entry | What it does |
|---|---|
| Grouped | Select grouped nodes. |
| Linked From | Select the nodes that are linked from the currently selected nodes. The nodes before in the hierarchy. |
| Linked To | Select the nodes that are linked to the currently selected nodes. The nodes behind in the hierarchy. |
| Activate same type previous | Activate same node type before the current selection, step by step. |
| Activate same type next | Activate same node type after the current selection, step by step. |

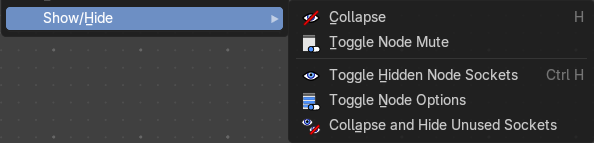

Show/Hide submenu
Here you find hide options to make the display of nodes more compact.
Demonstration happens at an image node.
Collapse
Hides everything but input and output dots. To view the full node again perform the operator again. It's a toggle. Or click at the triangle left besides the node name.
Toggle Node Mute
Deactivates the node.
Toggle hidden node sockets
Toggles away the unused node sockets. In this case the vector input node socket and the alpha output node socket will be hidden.
Toggle Node Options
Hides away the properties.
Collapse and Hide Unused Sockets
Like Hide. Hides everything but the node sockets. But it also hides the unused node sockets.
Toggle Node Options
Shows or hides the node options.
Collapse and Hide Unused Sockets
Shows or hides unused sockets.
Quick Favorites menu
When you right click at a menu or a button, then a right click menu will open. Tools have usually a Add to Quick Favorites menu entry.
The Quick Favorites Menu is empty by default. With Add to Quick favorites you can add this menu to the Quick menu.
In the 3D view we have a menu called Quick in the header, which shows this content then. In the Image Editor you can just call it with its hotkey. Q. It has no regular menu entry here.
