Editors
Add Menu - Input - Constant
Provide a true / false value.

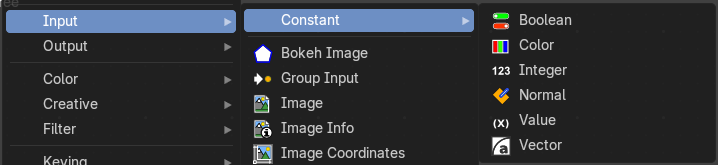

Add menu - Input - Constant
Boolean
Provide a true / false value.
| Entry | What it does |
|---|---|
| Properties | Boolean: The boolean toggle. |
| Outputs | Boolean: The state of the toggle. |
Color
Set a color.
| Entry | What it does |
|---|---|
| Properties | The RGB node uses the color picker widget. |
| Outputs | Color / RGBA: A single RGBA color value. |
Integer
Provides an integer value.
| Entry | What it does |
|---|---|
| Properties | Integer: The value. |
| Outputs | Integer: The output value. |
Normal
Input normalized normal values to the other nodes in the tree.
| Entry | What it does |
|---|---|
| Properties | Input Value: Here you can adjust the directory of the light to see how the normals behaves. |
| Outputs | Normal: The output value. |
Value
Provides a float value.
| Entry | What it does |
|---|---|
| Properties | Value: The float value. |
| Outputs | Value: The output value. |

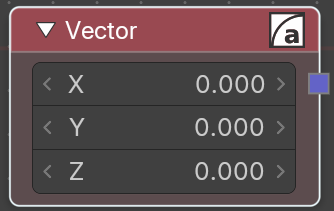

Vector
Provides a vector 3 value.
| Entry | What it does |
|---|---|
| Properties | Vector: The single values of the vector 3. |
| Outputs | Vector: The output vector. |
